Ceramic Bearing High Speed Dental Drill Push Button With Quick Coupling

Handpiece With Quick Coupling

Quick detail:

2 Hole High Speed Dental Handpiece
1. 2-hole standard wrench 2 Hole High Speed Dental Handpiece
2. Single water spray
3. It has unique appearance design and fluent outline.
4. Smooth as silk, it has excellent texture.
5. With people-friendly design, easy for operation.
6. With best quality cartridge, easier for cleaning.
7. With high-speed turbine rotation, it has better performances.
8. Chucking power of chucking needle is 20N-45N.
9. It is noise-free and stable 2 Hole High Speed Dental Handpiece .

Description:

Handpiece With Quick Coupling:M4/B2

Chuck Type:Push button

Bearing:Ceramic bearing

Workign Air Pressure:0.20-0.25MPa(0.22MPa prefrred)

Rotation Speed:350,000-400,000R.P.M(Standard Head);

280,000-320,000R.P.M(Torque Head);

Bur Applicable:Φ1.595-1.600mm

Spray:triple water spray

Product Parts:
Consists of handpiece head, handle, caudal thread, cartridge.
Working Conditions:
1. Air pressure 0.25~0.30mpa,must be filtrated.
2. Use high speed dental bur with shaft diameter Φ1.59~1.60mm×21-23mm and roghtness less than 0.8um.
3. The amount of handpieces spray or water spray should be able to adjusted.
4. Hard glass fiber,can be repeatedly sterilized in high temperautre and pressure.
Product Scope:
Only used for drilling, molar of stomatology clamping high-speed dental burs.

HPA011QC Handpiece we Provide Three Kind Of Head For Choice

Features:

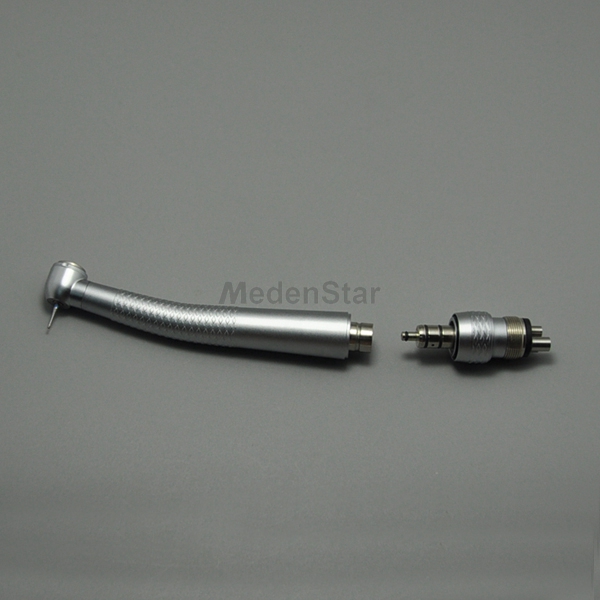

Connect the tubing(4 or 2 or 6 hole) if appears quick coupling handpiece, insert the quick coupling head in to, installation as shown photo:
Notice:1.Connect the required tubing according the model of each handpiece.
Handpiece With Quick Coupling
2.Only connecting correctly,fixed tightly and closely, can be used.

1. Inset quick couping
Insert quick coupling into socket connection of the high speed handpiece, push it forward,card tightly and firmly.
Notice:For quick coupling with decorative pattern, should be moving back before push forward, the can be card tightly and firmly

2. Extract the quick coupling
Hold the handpiece body and quick coupling by hands and drag them into opposition.
Notice:For quick coupling with decorative pattern, holding the decorative patten quick coupling, drag it in to behing.

Note:Only connecting correctly, fixed tightly and closely, can be used.

Maintenance:

1. Considering safety first, please be careful to use it with full attention.
2. Be limited to dentists who held the dental treatment qualifications.
3. Strictly forbid decomposition and reconstruction by unauthorized.
4. Please run point testing on outside of patients oral beforehand. If feel anomalies, please stop using immediately and contact with our after-sales center.
5. When appears abnormal during using, please stop it immediately and contact with our after-sales center.
6. It will cause a high noise using a center-vibration or bended bur and a handpiece of which bearing has been worn, A long time in this state will be harm to people’s hearing. Forbid using a vibration or bended bur, if appear high noise, please replace the shaft core early

Instruction:
1. Need to use clean, dry, oil-free medical air compressor;
2. Air pressure between 2.3-2.8kgf / cm2;
3. Combine the quick connector with the adapter on the bottom of the handpiece and verify that it is latched and secured;
4. Depress the pedal to see if the dental handpiece is running and the nosepiece is working properly. If everything is ok, start using a dental handpiece.
